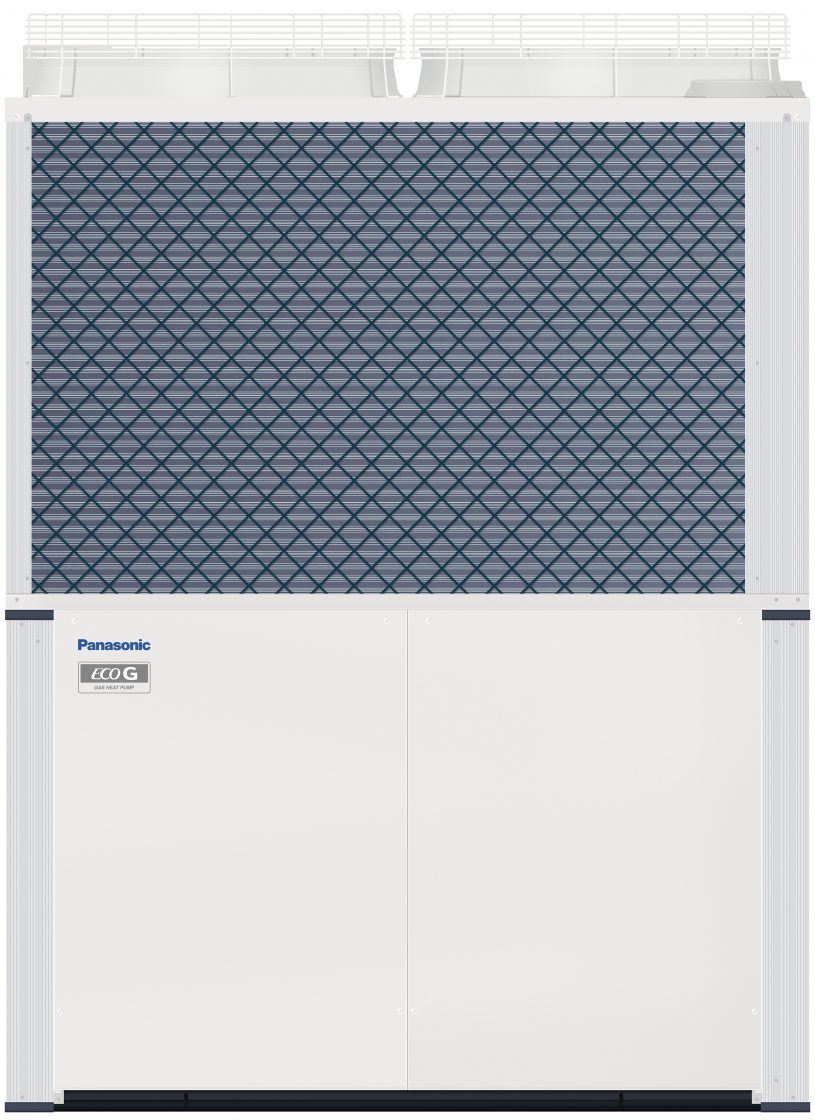

ECO G Type Gas Fired Heat Pump
Enquire Now
3-Pipe Heat Recovery System with simultaneous Heating & Cooling
The only 3-Pipe GHP system in Europe, the S Series ECO G 3-Pipe offers even more performance and outstanding features when you need simultaneous heating and cooling.
Now with capacities available from 16 HP to 25 HP, Panasonic offers the greatest choice and flexibility to solve any power problem or site requirement.
| Model Reference | Nom. Cool/ Heat (kW) | Max Pipe (m) | Fuse (Amps) | Pipe Gas/Liquid | Pipe Discharge | Fuel Gas | Electrical Supply |
|
| Connectivity | Outdoor Unit | |||||||
| Max 24 FC, 50-200% | U-16GF2E5 | 45.00 / 50.00 | 780 | 16 | 1 1/8 + 3/4 | 7/8 | R3/4 | Single |
| Max 24 FC, 50-200% | U-20GF2E5 | 56.00 / 63.00 | 780 | 16 | 1 1/8 + 3/4 | 1 | R3/4 | Single |
| Max 24 FC, 50-200% | U-25GF2E5 | 71.00 / 80.00 | 780 | 16 | 1 1/8 + 3/4 | 1 | R3/4 | Single |
If you are short of electric power, our ECO-G is a perfect solution.
- Runs on Natural Gas or LPG and requires only a small single phase supply
- Enables the buildings electrical power to be used for critical electrical demands
- Reduced capital cost to upgrade power substations to run heating and cooling systems
- Reduces power loadings within a building especially during peak periods
- Electricity supply freed up for other uses such as IT services, commercial refrigeration, manufacturing, retail spaces etc.
Features and Benefits
- Lowest nitrogen oxide emissions
- Water Chiller Option
- Quick start-up
- 100% heating capacity at low ambient conditions
- Free hot water generation
