NX Standard Under Ceiling (R32)
Enquire Now
New for 2021: Panasonic PT3 Under Ceiling Systems featuring Nanoe-X Technology.

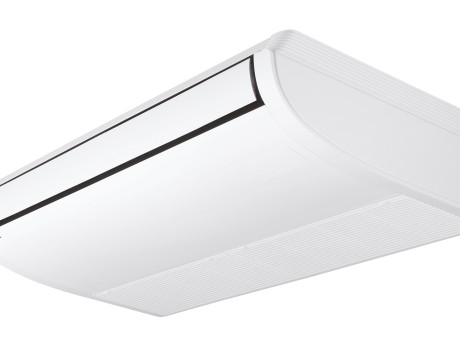

PT3 Ceiling mounted units provide large and wide air distribution which is good for big rooms.
The height and depth of all capacities are the same for unified appearance in mixed installations.
Incorporating nanoeTM X as a standard feature, a new NX Series delivers both a new level of temperature control and the quality air.
Integrated with new remote controller technology providing great accessibility and convenience in a stylish design.
Through a crossbreeding of two differing technologies, Panasonic is leading air-conditioning to a whole new level.
Sales information 2 Operational Manual Service manuals Installation manual IU Dimensions OU Dimensions Fault codes
Product video
Please click here for the Panasonic Nanoe-X Concentration Simulator. Nanoe-X is included as standard with all 3 Series Pac-i Panasonic Indoor Units.
| Model Reference | Nom. Cool (kW) | Nom. Heat (kW) | Max Pipe (m) | EuP Lot 10 Energy Rating | Fuse (Amps) In/Out | Pipe Size Gas | Pipe Size Liquid | Electrical Supply |
||
| Indoor Unit | Outdoor Unit | SCOP | SEER | |||||||
| S-3650PT3E | U-36PZ3E5 | 3.50 | 3.50 | 15 | 4.40 | 7.20 | 5/16 | 1/2 | 1/4 | Single |
| S-3650PT3E | U-50PZ3E5 | 5.00 | 5.00 | 20 | 4.10 | 6.70 | 5/16 | 1/2 | 1/4 | Single |
| S-6071PT3E | U-60PZ3E5A | 6.00 | 6.00 | 40 | 4.60 | 7.30 | 5/20 | 1/2 | 1/4 | Single |
| S-6071PT3E | U-71PZ3E5A | 6.80 | 6.80 | 40 | 4.30 | 5.90 | 5/20 | 5/8 | 1/4 | Single |
| S-1014PT3E | U-100PZ3E5 | 10.00 | 10.00 | 50 | 4.20 | 6.60 | 5/25 | 5/8 | 3/8 | Single |
| S-1014PT3E | U-125PZ3E5 | 12.50 | 12.50 | 50 | 3.80 | 6.10 | 5/30 | 5/8 | 3/8 | Single |
| S-1014PT3E | U-140PZ3E5 | 14.00 | 14.00 | 50 | 3.70 | 5.80 | 5/30 | 5/8 | 3/8 | Single |
| S-1014PT3E | U-100PZ3E8 | 10.00 | 10.00 | 50 | 4.20 | 6.60 | 5/16 | 5/8 | 3/8 | Three |
| S-1014PT3E | U-125PZ3E8 | 12.50 | 12.50 | 50 | 3.80 | 6.10 | 5/16 | 5/8 | 3/8 | Three |
| S-1014PT3E | U-140PZ3E8 | 14.00 | 14.00 | 50 | 3.70 | 5.80 | 5/16 | 5/8 | 3/8 | Three |
System Combination
- Indoor Unit(s)
- Condensing Unit
- CZ-RTC5 Controller (quoted by Logicool as standard option)
Optional Controls and Accessories (Indoor Unit only)
- CZ-RTC6B Hard-Wired Controller
- CZ-RTC6BL Hard-Wired Controller with Bluetooth
- CZ-RTC6BLW Hard-Wired Controller with WLAN and Bluetooth
- CZ-RWSU3 and CZ-RWRU3W Infra -Red Controller and Adapter
- CZ-CAPWFC1 Commercial WLAN Adapter (not required when using CZ-RTC6BLW Controller)
- CZ-KPU3AW Grille with in-built EcoNavi functionality
- PAW-WTRAY – Tray for condenser water compatible with outdoor
elevation platform - PAW_GRBDSE20 – Outdoor base ground support for noise and vibration
absorption - PAW-GRDST40 – Outdoor elevation platform 400 x 900 x 400mm
- CZ-140DRS1 Drain Kit
- CZ-P224BK2BM for Twin-Split Application
- CZ-RE2C2 Simplified, Hard Wired Controller
- CZ-CENSC1 EcoNavi Sensor
- Additional Controls available here
Key Features
- Indoor Unit equipped as standard with upgraded and improved nanoe™X system for improved air quality
- New Adaptive Ducted Unit, Under Ceiling, Commercial Wall and Cassette models
- New 4-Core Interconnecting wiring
- Flexible Control with IoT Integration
- New, modern Wired Remote Controller with option for WLAN & Bluetooth connectivity
- New Maintenance Tool
- Better SCOP & SEER (up to 15 %)
- Super quiet operation from 28 dB(A)
Power/Wiring:
New Panasonic NX systems simply require power to condensing unit and then a 3 core plus earth connection between outdoor unit and indoor unit.
Advanced Technical Data
| Indoor Unit Technical Data | |||||||
| Model | S-3650PT3E | S-6071PT3E | S-1014PT3E | ||||
| Cooling (kW) - Nominal | 3.50 | 5.00 | 6.00 | 7.10 | 10.00 | 12.50 | 14.00 |
| Heating (kW) - Nominal (Standard Inverter) | 3.50 | 5.00 | 6.00 | 7.10 | 10.00 | 12.50 | 14.00 |
| Heating (kW) - Nominal (Elite Inverter) | 4.00 | 5.60 | 7.00 | 8.00 | 11.20 | 14.00 | 16.00 |
| Sensible Cool Capacity (KW) - UK | 2.40 | 3.20 | 4.00 | 4.30 | 7.10 | 8.20 | 8.90 |
| Sound Pressure Level (dBA) | 36/32/28 | 37/33/28 | 38/34/29 | 39/35/30 | 42/37/34 | 46/40/35 | 47/41/36 |
| Sound Power Level (dBA) | 54/50/46 | 55/51/46 | 56/52/47 | 57/53/48 | 60/55/52 | 64/58/53 | 69/59/54 |
| Height - mm (grille) | 235 | ||||||
| Width - mm (grille) | 960 | 960 | 1275 | 1275 | 1590 | 1590 | 1590 |
| Depth - mm (grille) | 690 | ||||||
| Weight - kG (grille) | 26 | 26 | 34 | 34 | 40 | 40 | 40 |
| Max Air Flow Rate (m³/min) | 34.00 | 32.70 | 42.60 | 45.90 | 73.00 | 82.00 | 84.00 |
| Fused Spur (A) | 5 (Power to Outdoor) | ||||||
| Outdoor Unit Technical Data | |||||||
| Combinations | Single | Single and Twin | |||||
| Model | U-36PZ3E5 | U-50PZ3E5 | U-60PZ3E5 | U-71PZ3E5 | U-100PZ3E5(8) | U-125PZ3E5(8) | U-140PZ3E5(8) |
| Height (mm) | 619 | 619 | 695 | 695 | 996 | 996 | 996 |
| Width (mm) | 824 | 824 | 875 | 875 | 980 | 940 | 980 |
| Depth (mm) | 299 | 299 | 320 | 320 | 370 | 370 | 370 |
| Weight (kG) | 32 | 35 | 42 | 50 | 90 | 94 | 94 |
| Airflow (m3/min) Cool / Heat | 33.60 / 34.00 | 32.70 / 31.90 | 42.60 / 41.50 | 44.70 / 45.90 | 76.00 / 70.00 | 86.00 / 78.00 | 89.00 / 83.00 |
| Sound Pressure Cool/Heat Hi (dBA) | 47 / 47 | 46 / 46 | 47 / 48 | 48 / 49 | 52 / 52 | 55 / 55 | 56 / 56 |
| Sound Power Cool/Heat Hi (dBA) | 64 / 66 | 64 / 64 | 64 / 65 | 66 / 68 | 70 / 70 | 73 / 73 | 74 / 74 |
| Liquid (mm(inches)) | 6.35 (1/4) | 6.35 (1/4) | 6.35 (1/4) | 6.35 (1/4) | 9.52 (3/8) | ||
| Gas (mm(inches)) | 12.70 (1/2) | 12.70 (1/2) | 12.70 (1/2) | 15.88 (5/8) | |||
| Max Pipe Run (m) | 15 | 20 | 30 | 40 | 50 | 50 | 50 |
| Max Pipe Lift (m) | 15 (15 if condenser is lower than IU) | 20 (15) | 30 | 30 | 30 | ||
| Pre-charged to (m) | 7.5 | 7.5 | 7.5 | 10 | 30 | 30 | 30 |
| Standing Charge (kG) | 0.87 | 1.14 | 1.15 | 1.32 | 2.40 | 2.80 | 2.80 |
| Additional Charge/m (g) | 10 | 15 | 15 | 17 | 45 | 45 | 45 |
| Refrigerant | R32 | ||||||
| Phase | Single | Single (Three) | |||||
| Power Supply to | Outdoor | ||||||
| Max Run Current (A) Cool | 3.85 | 5.95 | 7.45 | 10.00 | 12.10 (4.10) | 16.30 (5.45) | 20.40 (6.80) |
| Max Run Current (A) Heat | 3.35 | 5.05 | 6.20 | 7.80 | 9.25 (3.15) | 13.10 (4.40) | 15.60 (5.25) |
| Fuse Rating (A) | 16 | 16 | 20 | 20 | 25 (16) | 32 (16) | 32 (16) |
| Interconnecting | 3 Core plus earth |
||||||
| Twin Pipe Kit | Twin Combination Not Possible | CZ-P224BK2BM | |||||
